PostPosted: Sat Mar 16, 2013 9:25 pm
Site Admin
User avatar

Joined: Mon Mar 17, 2008 1:40 am
Posts: 11425
Quote:
First what i notice is too much chasing.. sync constantly tries to "sync' but i know that there is no too much ratio difference between those 2 cards.
What does 'chasing' mean here?
Quote:
What is "M" and "x" ?

x stays most of time to 1.000
and M is (after some time) around 1.0080 - 1.0100
x is the speedup; if it's at 1.000 the filter is doing nothing.

M is the measured median offset. If this moves away from 1 the x value will be slightly adjusted.


Top

PostPosted: Sat Mar 16, 2013 9:38 pm

Joined: Sun Dec 12, 2010 2:26 pm
Posts: 885
Had a very rough night last night trying to sleep, so I'm just now really getting up.

I haven't had the opportunity to try to increase the volume of my preset, but I did just now try switching 80s style into "generic" mode. My understanding is that to do that, you just disable advanced clipper, hard limit (if enabled), pre-emphasis, and phase rotation.

When I do that, and attempt to play any track, I have overshoots in the output like crazy. However, when I load up the built-in "generic", it is distinctly softer and no overshooting.

What's up with that?

Edit: Found the answer. Web one doesn't use volume reduction in Simple Clipper, but the Generic one does.

I have a similar issue with Cobalt, where my settings were changed from what I had intended. The difference is that since I knew the presets got "genericified", I had already been striving for no overshooting in Generic at the exact same settings that the Web was going to use, making the volume boosting for the web version happen through higher Advanced Clipper drive.


Top

PostPosted: Sat Mar 16, 2013 10:04 pm
User avatar

Joined: Wed Nov 19, 2008 7:44 pm
Posts: 1169
Location: Bulgaria
Ok.. understand you Hans .. but the question is .. is there any solution for this wobbling one .

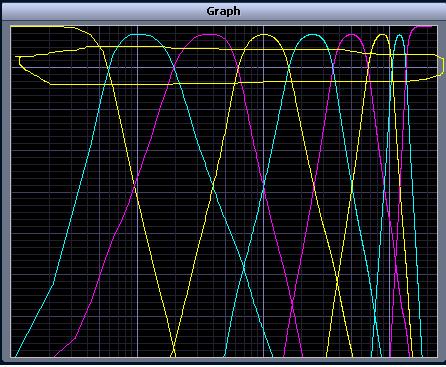

And i have question : What is this line in yellow do ?
What does it means ? Whether i set the steepness or bands freqs .... bands are always crossing at this line ?!
Is this line we are able to move up or down in some way or parameter ?


Attachments:
1234.JPG [ 50.16 KiB | Viewed 4914 times ]
Top

PostPosted: Sat Mar 16, 2013 10:30 pm
User avatar

Joined: Wed Nov 19, 2008 7:44 pm
Posts: 1169
Location: Bulgaria
Also check this
http://www57.zippyshare.com/v/39474678/file.html

Again if web player don`t play , download and see


Top

PostPosted: Sat Mar 16, 2013 10:50 pm
User avatar

Joined: Tue Mar 17, 2009 2:56 pm
Posts: 4231
Quote:
Quote:
First what i notice is too much chasing.. sync constantly tries to "sync' but i know that there is no too much ratio difference between those 2 cards.
What does 'chasing' mean here?
Meaning it constantly goes up and down from 1.0000 both M and x - Till it settle after some time.
I now set 0.15%
Quote:
x is the speedup; if it's at 1.000 the filter is doing nothing.
M is the measured median offset. If this moves away from 1 the x value will be slightly adjusted.
Then something is not right on that picture since M is never 1.000.. goes from 1.01 to 1.02 most of time. Or "slightly" mean VERY slightly?
Anyway.. it seems that it keeps buffer always in same place.. which is good.


Top

PostPosted: Sun Mar 17, 2013 1:50 am
User avatar

Joined: Wed Jun 16, 2010 4:30 pm
Posts: 600
Location: Buenos Aires, Argentina
Quote:
And i have question : What is this line in yellow do ?
Perhaps the crossing point of -6 dB (Linkwitz). http://en.wikipedia.org/wiki/File:Linkw ... rworth.svg
Where the sum of the bands gives a flat response.

_________________
by GAP
"Less is More" (Bob Katz)


Top

PostPosted: Sun Mar 17, 2013 3:20 am
User avatar

Joined: Tue Mar 17, 2009 2:56 pm
Posts: 4231
Quote:
Quote:
And i have question : What is this line in yellow do ?
Perhaps the crossing point of -6 dB (Linkwitz). http://en.wikipedia.org/wiki/File:Linkw ... rworth.svg
Where the sum of the bands gives a flat response.
Yes it is, except that Hans's crossovers are not flat :)
And looking at that nice picture, corssover in ST is that pink line - more or less.


Top

PostPosted: Sun Mar 17, 2013 4:50 am
Site Admin
User avatar

Joined: Mon Mar 17, 2008 1:40 am
Posts: 11425
Quote:
Quote:
Quote:
First what i notice is too much chasing.. sync constantly tries to "sync' but i know that there is no too much ratio difference between those 2 cards.
What does 'chasing' mean here?
Meaning it constantly goes up and down from 1.0000 both M and x - Till it settle after some time.
I now set 0.15%
Quote:
x is the speedup; if it's at 1.000 the filter is doing nothing.
M is the measured median offset. If this moves away from 1 the x value will be slightly adjusted.
Then something is not right on that picture since M is never 1.000.. goes from 1.01 to 1.02 most of time. Or "slightly" mean VERY slightly?
Anyway.. it seems that it keeps buffer always in same place.. which is good.
M isn't that important - it just means that there's a small offset between expected and actual buffer filling. The adjustment works a lot slower, since you say it's at 1.000 most of the time I would say it's working fine.


Top

PostPosted: Sun Mar 17, 2013 4:52 am
Site Admin
User avatar

Joined: Mon Mar 17, 2008 1:40 am
Posts: 11425
Quote:
Ok.. understand you Hans .. but the question is .. is there any solution for this wobbling one .
And i have question : What is this line in yellow do ?
What does it means ? Whether i set the steepness or bands freqs .... bands are always crossing at this line ?!
Is this line we are able to move up or down in some way or parameter ?
That line indicates -6 dB (each line is one, and the brighter ones are 6 dB apart each. Since the crossovers are at of very close to -6 dB, I made the -6 a bit brighter).

Why "approximately" -6? Because the total of all bands at each location must be '1' (0 dB). So if there are other bands that are much softer they will slightly lower the crossover point a bit further.


Top

PostPosted: Sun Mar 17, 2013 4:55 am
Site Admin
User avatar

Joined: Mon Mar 17, 2008 1:40 am
Posts: 11425
Quote:
Also check this
http://www57.zippyshare.com/v/39474678/file.html

Again if web player don`t play , download and see
You've set resampling quality to 8, default is 32! The lower you set it the more artifacts you'll get! (But it will use less processing power, and it's very doubtful that you can actually hear it).
