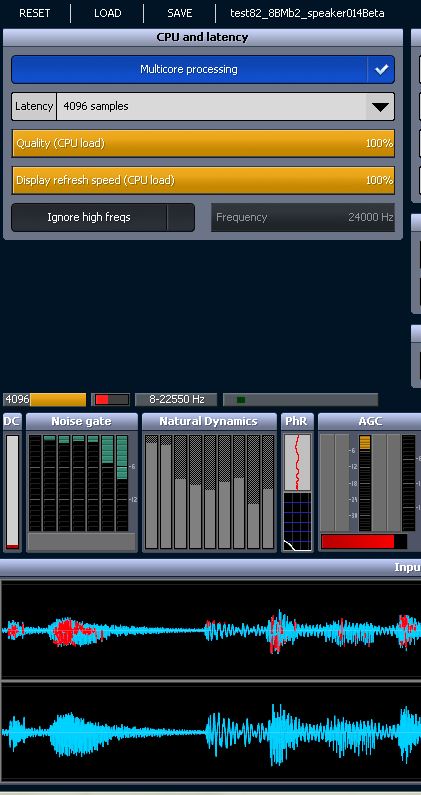

Also "Composite clipper" phase issue still exists. With CC on - there is 90 degrees error. Without CC, no phase error (only that little pumping).
May be it`s related to the my last post for the little pumping signal.

Edit :
Link for video prove : http://www7.zippyshare.com/v/T6y0IdaX/file.html
When CC OFF , there is only that pumping i reported .

Nice most bugs are gone but I found another one. When ignore high freq is enabled the l-r portion of the signal is boosted. And some times feeding in a mono signal generates l-r spectrum which should not happen.

_________________
Very proud user of Stereo Tool since 2010. Thanks Hans.

My radio station
http://amradio.ddns.net

Yep, look at previous page - reported with picture.

Yes but the bug reported by you is different. Mine is the correct l-r signal boosted with both side-bands and centred at the 38khz sub-carrier

_________________
Very proud user of Stereo Tool since 2010. Thanks Hans.

My radio station
http://amradio.ddns.net

Can you please make a shot , so i can see ?

This is not a 90 degrees error, but with composite clipping, the left and right channel are not always clipped identically. Fixing that would lower the audio level with no audible benefit (in fact, it would degrade the audio quality).

(Having said that, it might be a bit problematic when you perform stereo-to-5.1 upmixing....)

I don`t know .
I test it with the white noise and there is NO phase difference on the real output audio. Which is more strange and seems to be visualization bug or something ? It`s really strange because the FFT test program shows the same . MPX tool too .

As I said, there is a (nearly inaudible) difference between left and right, but it sounds good and fixing it will make the sound both softer and less good. So, there's no problem.

Turning Ignore Frequencies Above off, doesn't solve the strange behavior. Closing and reopen neither.

Yup, this isn't easy to fix, I think I'm going to have to turn the red display off in that mode. I'll try if I can find a better solution but it won't be easy.

Edit: Oops, I didn't read it properly. Hm... Will check!

Edit #2: Wow, this isn't new - it's also broken in released version 7.70!
